510104134

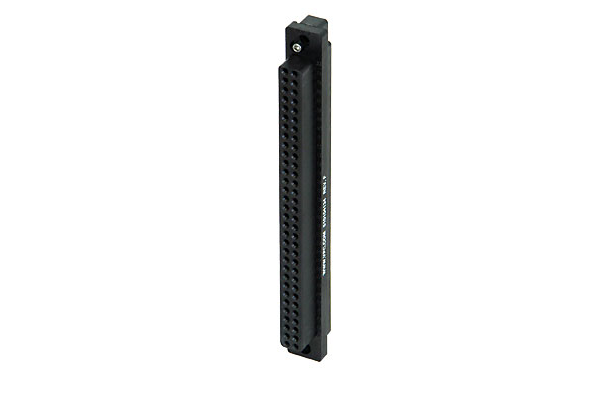

Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position

Specifications
Material Black PPS
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 220° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Insulation Resistance 4000 MΩ Min.
Available Contact Positions 64
Module Slots Needed 1

Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position

Primary mating module 510108101. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610110101

Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp only
610110128

Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
610110167

Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
610110177

Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
610110179

Signal, Contact, Receiver, TriPaddle, 5 Amp, .025" Round Post

Module - 90 Series ITA

Part Number

Description

510108101

Signal, Module, TriPaddle, ITA, 90 Series, 64 Position
510108112

Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts

Module Accessory Kit

Part Number

Description

VPC 510109302

Module Accessory Kit, Quantity 26, 4-40 x .625" Socket Head Cap Screws
VPC 510109305

Module Accessory Kit, Quantity 26 2-56 x .187" Socket Head Cap Screws

PCB Adapter- ITA

Part Number

Description

510108140

PCB Adapter, ITA, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors

PCB Adapter- Receiver

Part Number

Description

510104128

PCB Adapter, Receiver, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors

Strain Relief Plate

Part Number

Description

510109116

Strain Relief Plate, Receiver, 90 Series
