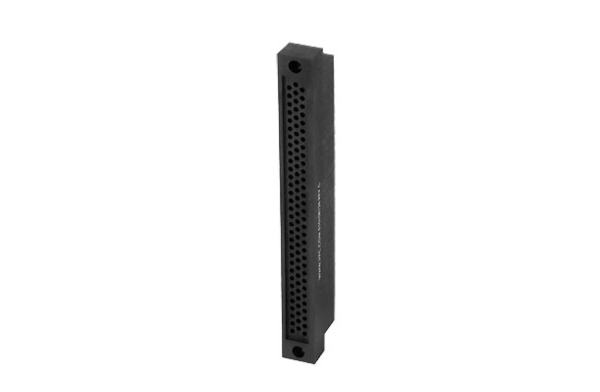

TriPaddle Signal, Module, ITA, 96 Position
The 96 Position Signal Modules are made from Black-PPS, withstanding temperatures up to 220°C. Nomenclature is molded on the Module.
Accessories and Related Parts
Contact - ITA
Signal, Contact, ITA,TriPaddle,7 Amp, 20-24 AWG
Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG
Module - ITA
Signal Module, ITA, TriPaddle, 96 Position with Right Angle Contacts for Custom PCB Mounting
Module - Receiver
Signal Module, Receiver, TriPaddle, 96 Position with Right Angle Contacts for Custom PCB Mounting
Signal, Module, Receiver, TriPaddle, 96 Position
Module Accessory Kit
Module Accessory Kit, Quantity 26 4-40 x .560" Socket Head Cap Screws
PCB Adapter, Receiver, TriPaddle, 96 Position, to PCB-Mounted 1x96 Male DIN 41612 Connector
Strain Relief Plate
Strain Relief Plate, ITA, 90 Series
