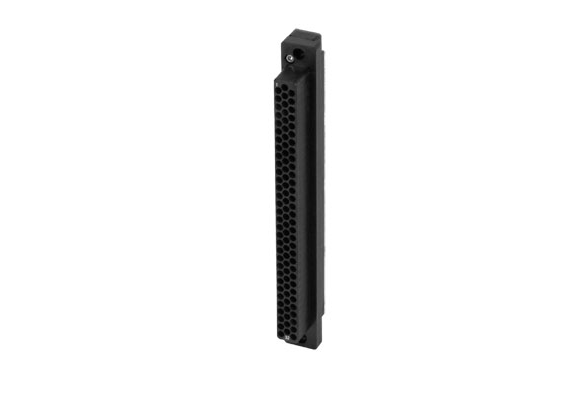

Specifications
Material	Black PPS
Temperature Range	Operating • -55° C to 125° C Non Operating • -65° C to 220° C
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Available Contact Positions	96
Module Slots Needed	1

	Part Number	Description
	610110101	Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG
	610110128	Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
	610110167	Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
	610110177	Signal, Contact, TriPaddle , Receiver, 10 Amp, 14-18 AWG
	610110179	Signal, Contact, TriPaddle, Receiver, 5 Amp, .025" Round Post

	Part Number	Description
	510108125	Signal Module, ITA, TriPaddle, 96 Position with Right Angle Contacts for Custom PCB Mounting
	510108126	TriPaddle Signal, Module, ITA, 96 Position

	Part Number	Description
	510109302	Module Accessory Kit, Quantity 26, 4-40 x .625" Socket Head Cap Screws
	510109305	Module Accessory Kit, Quantity 26 2-56 x .187" Socket Head Cap Screws

	Part Number	Description
	510104139	PCB Adapter, Receiver, TriPaddle, 96 Position, to PCB-Mounted 1x96 Male DIN 41612 Connector
	510108148	PCB Adapter, ITA, TriPaddle, 96 Position, to PCB-Mounted 1x96 Male DIN 41612 Connector
