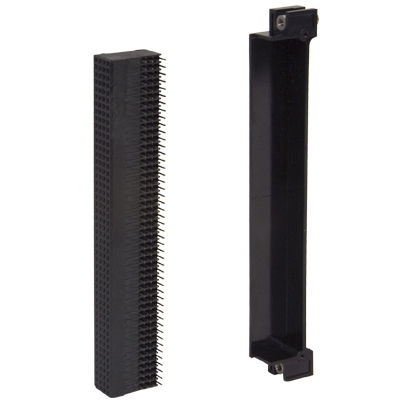

Header/Shroud Right Angle Kit, ITA, 90 Series, QuadraPaddle, for Custom PCB Mounting
Header/Shroud Right Angle Kit, ITA, QuadraPaddle, for Custom PCB Mounting
This kit is for mounting QuadraPaddle ITA modules to custom-designed PCBs. Requires QP ITA module p/n 510151107.
If you do not have ITA module p/n 510151107, purchase the full ITA QP mounting kit instead, p/n 510151121.
Accessories and Related Parts
Module - 90 Series ITA
Part Number
Description
Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB Mounting
Module - 90 Series Receiver
Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
Signal Module, Receiver, QuadraPaddle, 192 Position, Right Angle Contact Kit for Custom PCB Mounting
