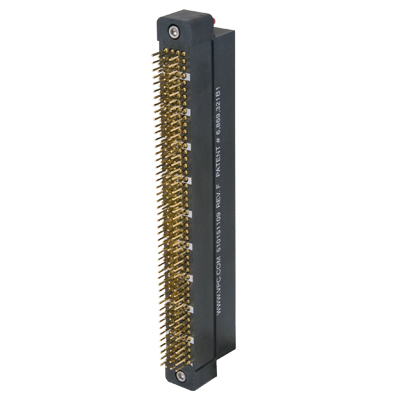

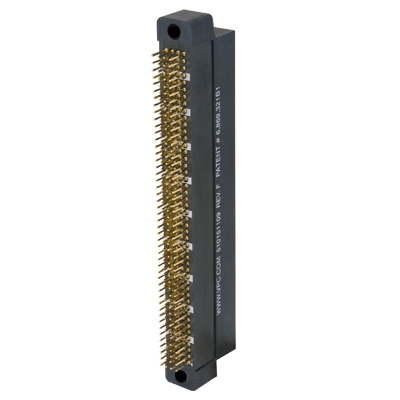

Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 192
Module Slots Needed 1

Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)

Used with QP ITA module p/n  510109316 for PCB mounting.

NOTE: Part # 510151107 Rev F and higher utilize captive screws that cannot be replaced with screws from currently VPC- offered screw kits.

Primary mating module 510150115. (May mate with other Receiver modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - ITA

Part Number

Description

610138115

Signal, Contact, ITA, QuadraPaddle, 5 Amp, .025" Round Post

Module - 90 Series ITA

Part Number

Description

510109316

Header/Shroud Right Angle Kit, ITA, 90 Series, QuadraPaddle, for Custom PCB Mounting
510151105

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
510151121

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB
Mounting
510151124

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)

Module - 90 Series Receiver

Part Number

Description

510150115

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
510150130

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
510150136

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
510150137

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
510150152

Signal Module, Receiver, QuadraPaddle, 192 Position, Right Angle Contact Kit for Custom PCB Mounting

Module Accessory Kit

Part Number

Description

VPC 510109302

Module Accessory Kit, Quantity 26, 4-40 x .625" Socket Head Cap Screws

PCB Adapter- Receiver

Part Number

Description

510150125

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Male SCSI Connectors
510150126

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Female VHDCI Connectors
510150127

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 1x100 Pin Female SCSI Connector
510150128

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x96 Male SCSI Connector
510150155

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 6x32-Pin Ribbon Cable Headers
510150210

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to 2 PCB-Mounted 12X Female InfiniBand Connectors (LVDS)
