• Pass-thru technology • VTAC, QuadraPaddle, Micro Power / Micro Coax, 20/26 GHz Coax

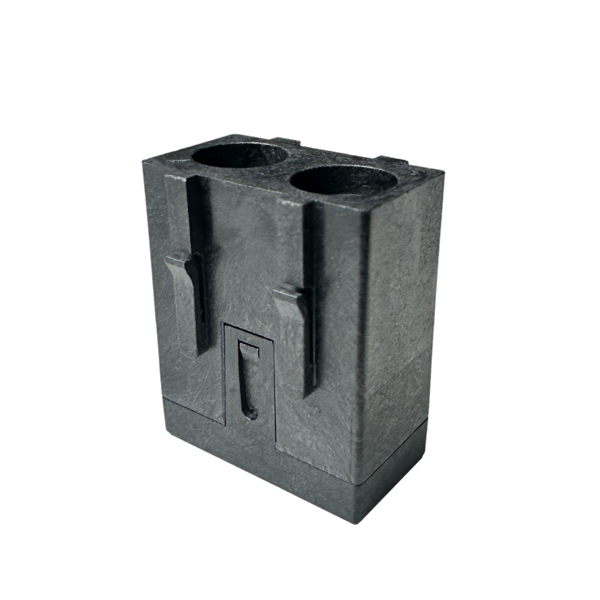

20/26 GHz Coax, Insert, Receiver, SIM, 2 POS, 6 Slot (not loaded)
20/26 GHz Coax patchcords need to be purchased separately.
Insert also compatible with 75 Ohm HD Receiver Contact 610102133.
Build a Patchcord
Accessories and Related Parts
Contact - Receiver
Part Number
Description
Coax, Contact, Receiver, 20/26 GHz, SF142B, 90 Series modules only
Coax, Contact, Receiver, 75 Ohm HD, sm59/U Belden 1855A, 3 GHz
Coax, Contact, Receiver, 20/26 GHz, 3.5MM, w/ SMA Adapter, 90 Series Modules only
Insert - 20/26 GHz Coax
20/26 GHz Coax, Insert, ITA, SIM, 2 POS, 6 Slot (not loaded)
ITA
ITA, i2 MX, 22 Slot VTAC/SIM Insert, EMI
ITA, i2 MX 22 Slot VTAC/SIM Insert, EMI, XL Backshell
Module - 90 Series ITA
SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots
Module - 90 Series Receiver
SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots
Module - iCon/i1 ITA
VTAC, Module, ITA, iCon Series, 128 Pos, 16 Slot
Module - iCon/i1 Receiver
VTAC, Module, Receiver, iCon Series, 128 Pos, 16 Slot
Receiver
Receiver, i2 MX, 22 Slot VTAC/SIM Insert, EMI
Tool- Crimp
Tool, Crimp, 20/26 GHz Coax Contacts, Receiver and ITA
Tool- Extraction
Tool, Extraction, 75 Ohm and 20/26 GHz Coax, Receiver and ITA
