• Pass-thru technology • VTAC, QuadraPaddle, Micro Power / Micro Coax, 20/26 GHz Coax

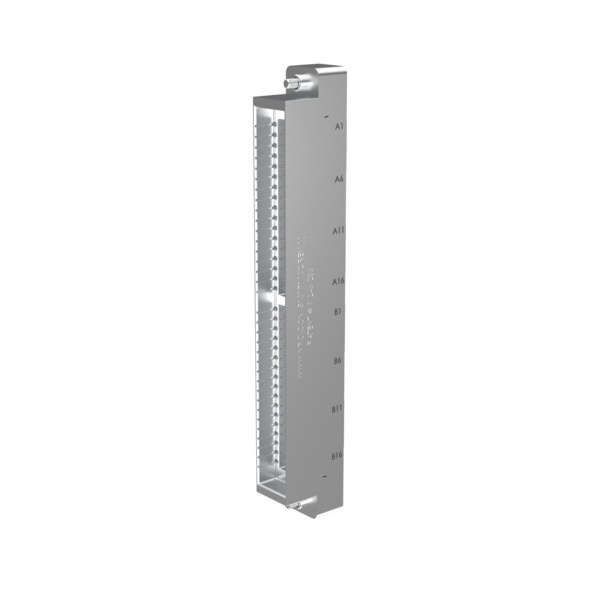

SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots
This SIM ITA module has 272 maximum contact positions and 34 insert slots. SIM modules are compatible with all 90 Series receivers and ITAs.
Primary mating module 510170101.
Accessories and Related Parts
Module - 90 Series Receiver
Part Number
Description
SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots
PCB Adapter- ITA
PCB Adapter, ITA, VTAC, to (6) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
PCB Adapter, ITA, SIM, VTAC, 16 Pos, 5 Slot, to (1) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
PCB Adapter, ITA, SIM, VTAC, 16 Pos, 6 Slot, to (1) Cat6
PCB Adapter, ITA, SIM, VTAC, 32 Pos, 6 Slot, to (1) HDMI
PCB Adapter, ITA, VTAC, to (2) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) and (4) RJ45 Connectors
PCB Adapter, ITA, SIM, VTAC, 32 Pos, 6 Slot, to (1) DisplayPort
Insert - VTAC
VTAC, Insert, Receiver/ITA, SIM, Blank Insert Kit, 10 Pieces
VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot
Insert - Right Angle
Micro Power, Header Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot
Signal, Insert, Receiver/ITA, QuadraPaddle ,SIM, Right Angle, 4 Pos, 1 Slot
VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot
VTAC, Insert, Receiver/ITA, SIM, Retention, 1 Slot
Insert - QuadraPaddle
Signal, Insert, ITA, QuadraPaddle, SIM, 1 Slot (not loaded- for discrete wiring only)
Signal, Insert, ITA, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot
Insert - Micro Power
Micro Power, Insert, ITA, SIM, 2 Pos, 2 Slot
Insert Bundles
Signal, Insert Bundle, ITA, QuadraPaddle, SIM, Right Angle and Pass-Thru
VTAC, Insert Bundle, Receiver/ITA, SIM, Right Angle and Pass-Thru
VTAC, Insert Bundle, Receiver/ITA, SIM, Vertical Header and Pass-Thru
Strain Relief Plate
Strain Relief Plate, Receiver/ITA, SIM, for wired solutions
Strain Relief Plate, Receiver/ITA, SIM, PCB or wired solutions
Tool- Extraction
Tool, Extraction, VTAC, Receiver and ITA
Accessory
PCB Bracket Kit, SIM Module, Receiver/ITA, for PCB Mounting (Right Angle)
Insert - 20/26 GHz Coax
20/26 GHz Coax, Insert, ITA, SIM, 2 POS, 6 Slot (not loaded)
Insert - Micro Power/Micro Coax
Micro Power or Micro Coax, Insert, ITA, SIM, 2 Pos, 2 Slot (not loaded)
Insert - Vertical
VTAC, Insert, Receiver/ITA, SIM, Vertical Header, 8 Pos
Module Accessory Kit
Module Accessory Kit, Quantity 26 2-56 x .375" Flat Head Phillips Screws Stainless Steel
Module Accessory Kit, Quantity 26 0-80 x .50" Pan Head Phillips Screws Stainless Steel
Module Accessory Kit, Quantity 26, 4-40 x .56" Socket Head Cap Screws
SIM Module Right Angle Kit

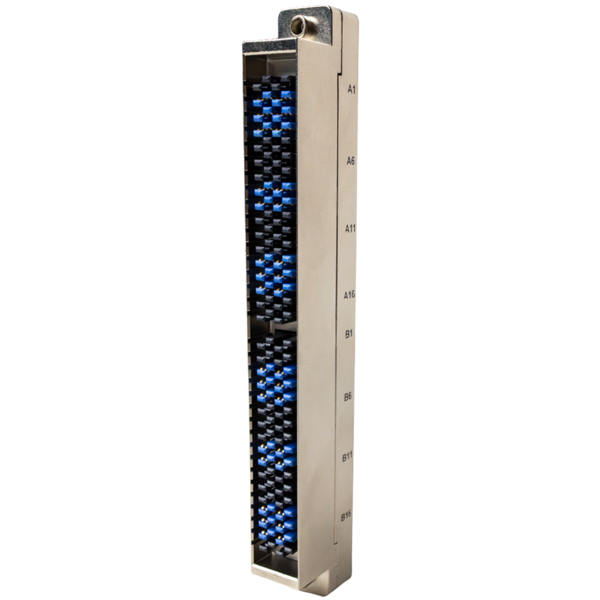

SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
