510181105

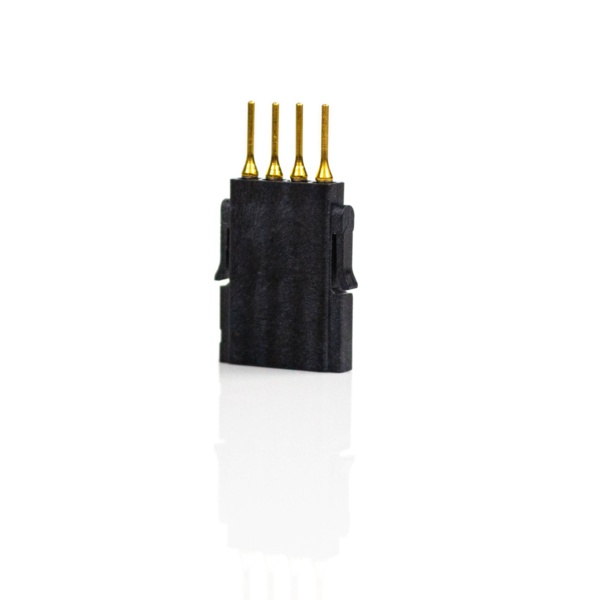

Signal, Insert, ITA, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot
| Specifications | |
|---|---|
| Operating Voltage & Current | 5 Amps Cont. (600V max) |
| Contact Resistance | 25 mOhms Max. |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Contact Plating | 30µ” Au over 100µ” Ni |
| AVG Mating Force (lbs.) | 0.24 lb./ insert [109 g] |
