610138126

Signal, Insert, Receiver/ITA, QuadraPaddle ,SIM, Right Angle, 4 Pos, 1 Slot

Specifications
Data Rate 10+ Gpbs/diff pair
Operating Voltage & Current 3 Amps Cont., 350 volt Max
Contact Resistance 30 mOhms Max.
Dielectric Withstanding
Voltage (DWV)
1050 VDC Min.
Insulation Resistance 1000 MOhms Min.
Contact Plating 50µ” Au over 100µ” Ni
Insert Material

Outer Shell- LCP
Male Contact- Alloy 7025

AVG Mating Force (lbs.) 0.6 lb./ insert
Crosstalk -30 dB min
Impedance 100+/-10 Ohms/diff pair

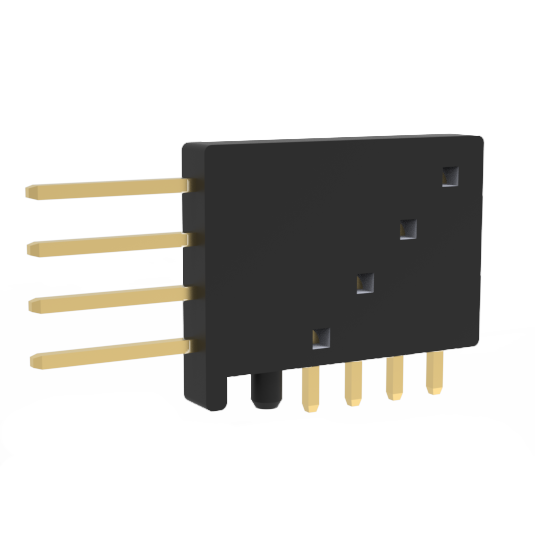

Signal, Insert, Receiver/ITA, QuadraPaddle ,SIM, Right Angle, 4 Pos, 1 Slot

This insert contains 4 right-angle QuadraPaddle contacts and is designed for soldering directly to a PCB as part of the Infinity Connector system. It is used in the 90 Series SIM Module and occupies 1 of the 34 slots in this module.
