610102133
Coax, Contact, Receiver, 75 Ohm HD, sm59/U Belden 1855A, 3 GHz
| Mechanical Specifications | |
|---|---|
| Durability | 20,000 cycles |
| Contact Material | Female & Male Shield – Brass Center Contact – BeCu |
| Contact Plating | Center Conductor Shield – 30µ” Au over 100µ” Ni |
| Contact Termination | Center Conductor - Solder Shield - Crimp |
| Insulator | PTFE |
| Mating Force | 2.0 lbs max [0.91 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 75 Ω |
| Frequency Range | DC to 3 GHz |
| VSWR | ≤ 2.26 @ 3 GHz |
| Insertion Loss | -0.86 dB Max |
| DWV | 1500 VDC min. |
| Contact Resistance | 5 mΩ center/ 3 mΩ outer |
| Cable Specifications | sm59/U Belden 1855A |
| Environmental Specifications | |
| Operating Temperature | -55°C to +125°C |
| Vibration | MIL-STD 1344, Method 2005, Test Condition 4 |
| Shock | MIL-STD 1344, Method 2004, Test Condition E |
| Insulation Resistance | 1000 MΩ min. |

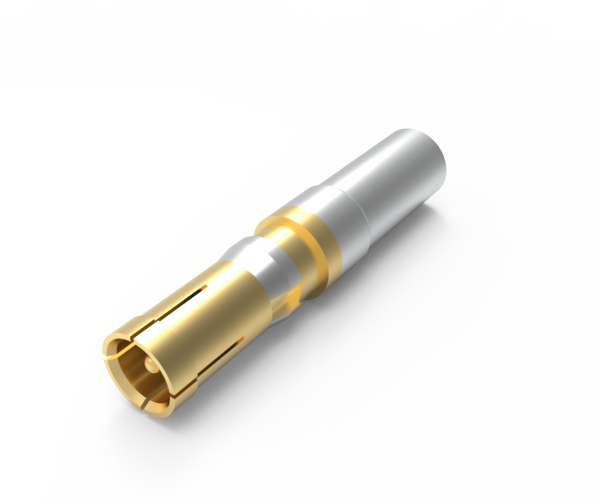

Coax, Contact, Receiver, 75 Ohm HD, sm59/U Belden 1855A, 3 GHz
Primary mating contact 610102132. (May mate with other ITA contacts, as well.)
