510160115

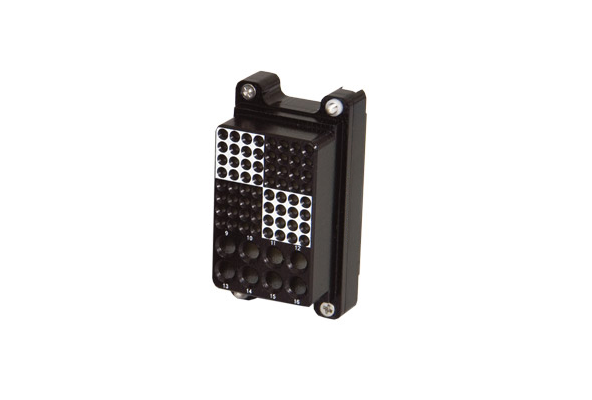

TriPaddle Signal / 20-26 GHz / 75 Ohm HD, Module, Receiver, iCon, 64/8 Position

Specifications
Material FR4
Temperature Range Operating:
-55?C to 125?C
Non Operating:
-55?C to 140 ?C
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 64/8
Module Positions Needed 1

TriPaddle Signal / 20-26 GHz / 75 Ohm HD, Module, Receiver, iCon, 64/8 Position

iCon modules mount from the rear of the iCon receiver and ITA and allow installation and removal of pre-wired cable blocks. The modules also have captive Phillips head screws.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610102119

Coax Contact, Receiver, 20/26 GHz Flex 402 (Only Available in Patchcords)
610102133

Coax, Contact, Receiver, 75 Ohm HD, sm59/U Belden 1855A, 3 GHz
610110101

TriPaddle Signal, Contact, Receiver, 7 Amp, 20-24 AWG, 30µ" Gold
610110128

TriPaddle Signal, Contact, Receiver, 10 Amp, 14-18 AWG, 50µ" Gold
610110167

TriPaddle Signal, Contact, Receiver, 7 Amp, 26-28 AWG, 30µ" Gold
610110177

TriPaddle Signal, Contact, Receiver, 10 Amp, 14-18 AWG, 30µ" Gold
610110179

TriPaddle Signal, Contact, Receiver, 5 Amp, .025" Round Post, 30µ" Gold

Module - iCon/i1 ITA

Part Number

Description

510161115

TriPaddle Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, iCon, 64/8 Position

Receiver

Part Number

Description

310123101 Receiver, iCon, with Protective Cover
310123102

Receiver, iCon EMI , with Protective Cover and Strain Relief
310128101 Receiver, i1, with Protective Cover
310131102

Receiver, D1, 1 Module
