510160114

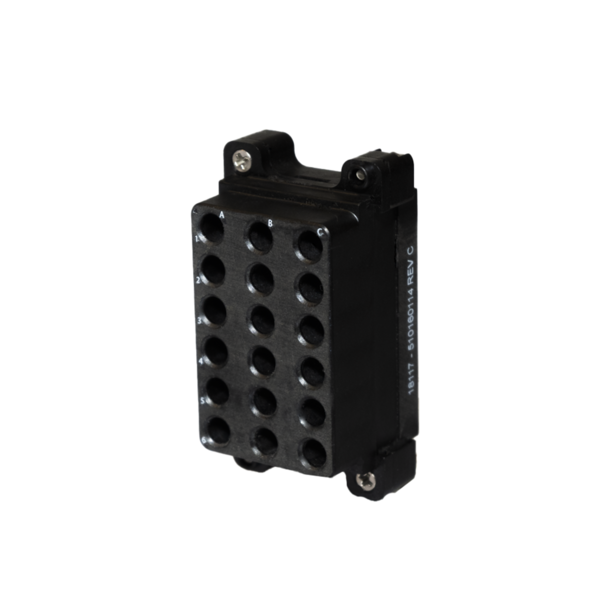

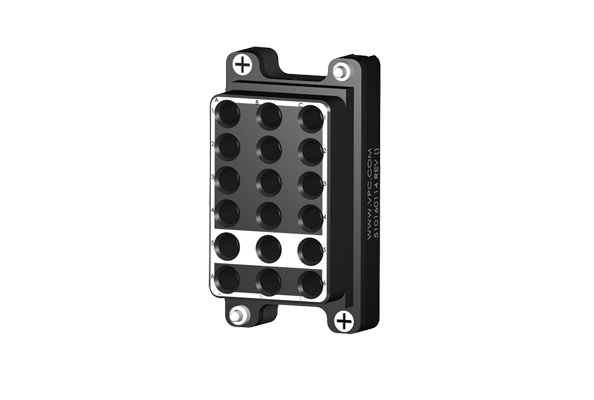

Coax/20-26 GHz/ 75 Ohm HD, Module, Receiver, iCon Series, 18 Position

Specifications
Material FR4
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-55°C to 140 °C
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 18
Module Positions Needed 1

Coax/20-26 GHz/ 75 Ohm HD, Module, Receiver, iCon Series,18 Position

iCon modules mount from the rear of the iCon receiver and ITA and allow installation and removal of pre-wired cable blocks.

 Primary mating module 510161114. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
