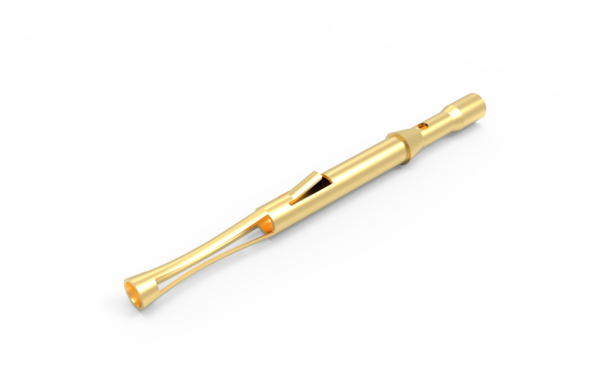

Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp/Solder

p/n 610110125 TriPaddle Receiver 50µ" AU plating
p/n 610110101 TriPaddle Receiver 30µ" AU plating

This contact primarily used in CASS applications

	Part Number	Description
	610110146	Signal, Contact, ITA, TriPaddle, 7 Amp, 20-24 AWG, Crimp/Solder

	Part Number	Description
	610110101	Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp only

	Part Number	Description
	510113120	Power, Module, Receiver, CASS, 76 Position
	510113125	Signal, Module, Receiver, CASS, 210 Position, Discrete Wiring

	Part Number	Description
	910101103	Tool, Crimp, QuadraPaddle and TriPaddle, Receiver and ITA, Locator Required

	Part Number	Description
	910110102	Tool, Extraction, TriPaddle and Thermocouple, Receiver and ITA

	Part Number	Description
	910104127	Tool, Locator, TriPaddle, Receiver
