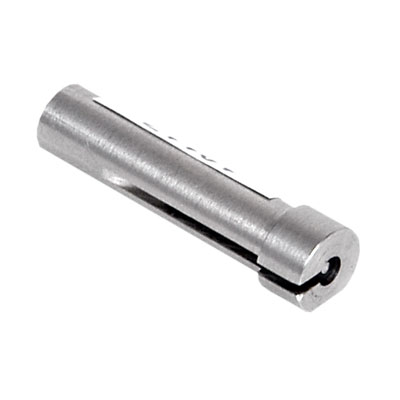

Tool, Locator, TriPaddle, Receiver
Used with crimp tool part # 910 101 103 to crimp TriPaddle receiver contacts to 20-28 AWG wire. This locator contains an integrated wire stop for consistent contact crimping.
Accessories and Related Parts
Contact - Receiver
Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG
Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp/Solder
Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
Signal, Contact, TriPaddle, Receiver, 5 Amp, .025" Round Post
Tool, Crimp, QuadraPaddle and TriPaddle, Receiver and ITA, Locator Required
