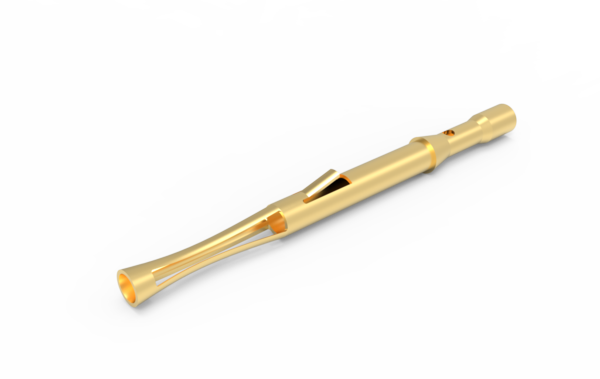

TriPaddle Signal, Contact, Receiver, 7 Amp, 20-24 AWG, 30µ" Gold

Operating Voltage & Current 7 Amps Max. Continuous (20 AWG)
600 Volt Max. use of wire Mil-W-16878/4
Contact Resistance 4 mOhms Max.
Measured at 50 mV @ 100 mA
Contact Body BeCu
Contact Plating 30µ” Au over 100µ” Ni
Contact Termination Crimp/Solder
Cycle Life 20,000 Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs.) 0.41

TriPaddle Signal contacts carry up to 7 amperes (22 AWG wire) or 10 amperes (14 AWG wire) continuous and can carry pulsed current up to 15 amperes at a maximum duration of 800 milliseconds. Resistance ranges from .002-.004 OHMS. Superior performance is achieved by VPC's patented Tri-Paddle design.
