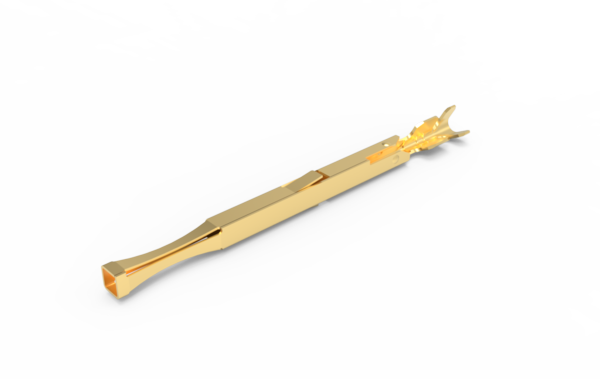

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, 22-28 AWG, Crimp, 30µ" Au

Operating Voltage & Current 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4
Contact Resistance 25 mOhms Max.
Measured at 50 mV @ 100 mA
Dielectric Withstanding
Voltage (DWV)
1500 VDC Min.
Insulation Resistance 5000 MOhms Min.
Contact Body BeCu
Contact Plating 30µ" Au over 100µ" Ni
Contact Termination Crimp
Cycle Life 20,000 Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force(lbs) 0.24

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, 22-28 AWG, Crimp, 30µ" Au

*Please note:  The difference between this p/n and 610138116 is the amount of gold plating. See below.
P/n 610138116- 50µ" Au
P/n 610138216- 30µ" Au

Primary mating contact 610138109. (May mate with other ITA contacts, as well.)
