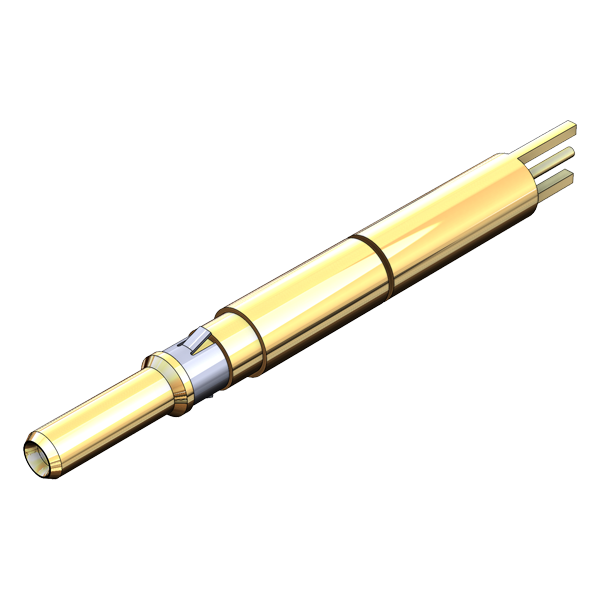

Micro Coax, Two Piece Contact, ITA, PCB Vertical Mount, Solder
| Mechanical Specifications | |
|---|---|
| Durability | 10,000 cycles |
| Contact Material |
Center Conductor – BeCu Shield – Brass |
| Contact Plating | 50µ" Au over 100µ" Ni |
| Contact Termination | Center Conductor - Solder Shield - Crimp |
| Insulator | PTFE |
| Mating Force | 1.5 lbs max [0.68 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 50Ω |
| Frequency Range | DC to 10 GHz |
| VSWR | 1.59 @ 10 GHz |
| Insertion Loss | – √f(GHz) x .325 dB |
| DWV | 800 V RMS |
| Contact Resistance | 6 mOhms center/4 mOhms outer |
| Environmental Specifications | |
| Operating Temperature | -65°C to +125°C |
| Vibration | MIL-STD 202, Method 204, Test Condition D |
| Shock | MIL-STD 202, Method 213, Test Condition I |
| Insulation Resistance | 2000 MOhms Min. |
- For vertical PCB terminations
- Used with standard 50 and 120 Pin Micro Coax Modules
- Up to 10GHz transmission speeds (PCB design dependent)
- Two-piece contact that allows for pin replacement, field repairable
- Mates to all existing Micro Coax contacts
