510108278

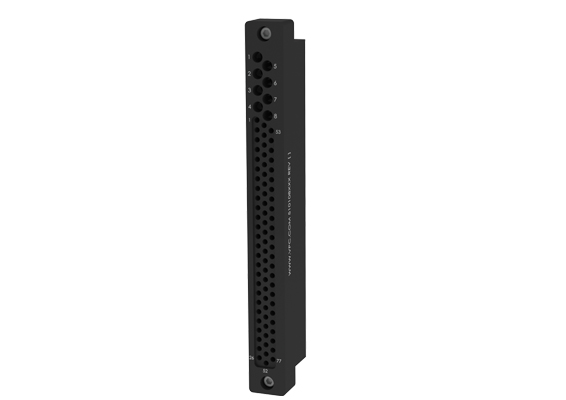

TriPaddle Signal & Micro Coax, Module, ITA, 90 Series, 77/8 Position

Specifications
Material FR4
Temperature Range Operating • -55°C to 125°C
Non-Operating • -55°C to 140°C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 77 TriPaddle Signal
8 Micro Power/Coax
Module Slots Needed 1

TriPaddle Signal & Micro Coax, Module, ITA, 90 Series, 77/8 Position

This hybrid module provides 77 TriPaddle Signal positions and 8 Micro Coaxial or Micro Power positions in a single wide module slot enabling consolidation of wiring and preserving valuable space in the ITA.
