510161106

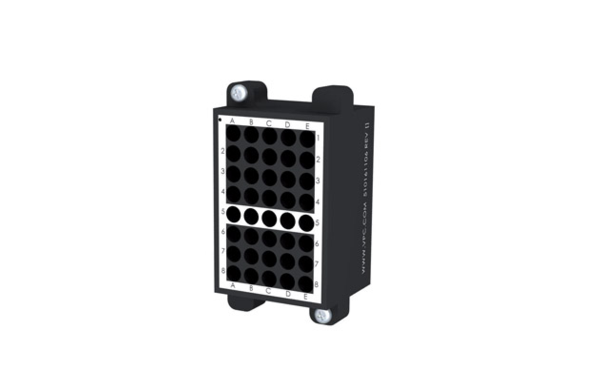

Micro Power/ Micro Coax, Module, ITA, iCon Series, 40 Position

Specifications
Material Glass filled PPS resin
Temperature Range Operating:
-55ºC to 125ºC
Non Operating:
-55ºC to 140ºC
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 40
Module Positions Needed 1

Micro Power/ Micro Coax, Module, ITA, iCon Series, 40 Position

iCon modules mount from the rear of the iCon receiver and ITA and allow installation and removal of pre-wired cable blocks.

Primary mating module 510160106. (May mate with other Receiver modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
