610151104
VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot
| Specifications | |
|---|---|
| Data Rate | 10+ Gbps per Differential Pair |
| Crosstalk | - 30 dB min |
| Characteristic Impedance |
100 +/- 10 ohms - Differential Pair |
| Operating Voltage and Current | 3 Amps Max. Continuous (350V max) |
| Contact Resistance |
30 mOhms max per Mated Contact |
| Insulation Resistance | 1000 MOhms Min. |
| Dielectric Withstanding Voltage | 1050 VDC rms Min. |
| Insert | Outer Shell –Black LCP Male Contact – Alloy 7025 |
| Contact Termination | Compliant |
| Contact Plating | 50µ" Au over 100µ" Ni |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs.) | 0.60 |

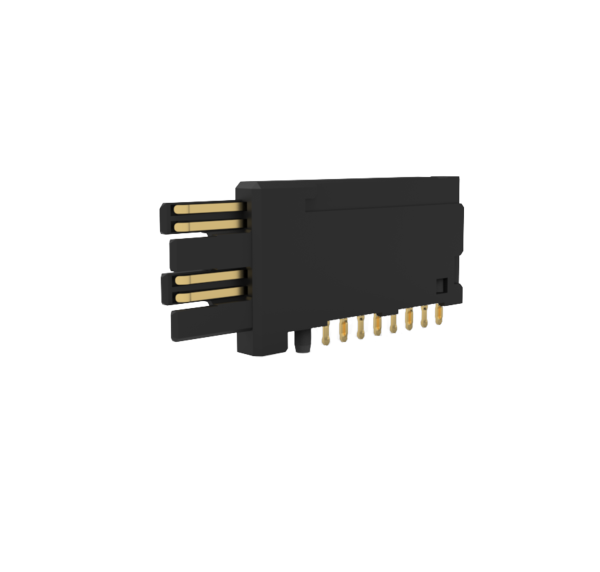

VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot
This insert contains 8 right-angle VTAC high speed contacts and is designed to mount directly to a PCB as part of the Infinity Connector system. It is used in the 90 Series SIM Module and occupies 1 of the 34 slots in this module.
Available in a set with VTAC pass-thru insert as 610151106. Use the video link on this page for help installing this insert on a PCB.
