610151103
VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot
| Specifications | |
|---|---|
| Data Rate | 12.5+ Gbps per Diff Pair |
| Crosstalk | - 30 dB min |
| Impedance |
100 +/- 10 ohms - per Diff Pair |
| Operating Voltage & Current | 3 Amps Max. Cont (350V max) |
| Contact Resistance |
30 mOhms max |
| Insulation Resistance | 1000 MOhms Min. |
| Operating Temperature |
-40°C to 125°C1 |
| Dielectric Withstanding Voltage | 1050 VDC rms Min. |
| Contact Plating | 50µ" Au over 100µ" Ni |
| Insert | Outer Shell- LCP Contact – Alloy 7025 |
| Contact Termination | Welded |
| Cycle Life | > 150,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs.) | 0.60 |
1 Rating applies to VTAC products that use potting compound OM 678, which has a -40°C lower limit.
2 Rating applies to VTAC products that do not require the use of potting compound OM 678.

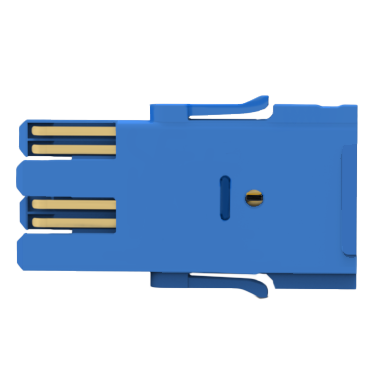

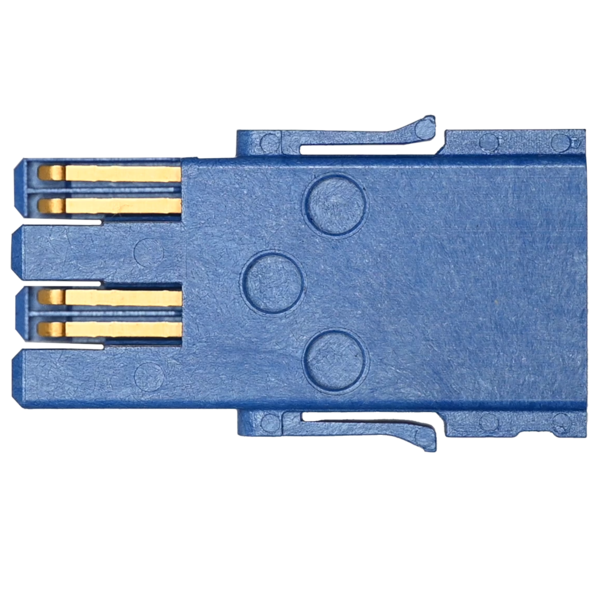

VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot
VTAC inserts are reversible and can be used as a Receiver or ITA insert.
VPC's revolutionary high speed VTAC insert contains 8 gold-plated, self-aligning contacts and is designed to reduce crosstalk. With a data transfer rate of more than 12.5 Gbps per differential pair and a cycle life of over 150,000, VTAC has set the standard for high speed interconnect solution requirements. Sold in individual quantities.
Use with VPC's right angle VTAC insert (p/n 610151104) or VPC's vertical header (p/n 610151107) to connect directly to a PCB.
