610151107
VTAC, Insert, Receiver/ITA, SIM, Vertical Header, 8 Pos
| Specifications | |
|---|---|
| Data Rate | 12.5+ Gbps per Differential Pair |
| Crosstalk | - 30 dB min |
| Characteristic Impedance |
100 +/- 10 ohms - Differential Pair |
| Operating Voltage and Current | 3 Amps Max. Continuous (350V max) |
| Contact Resistance |
30 mOhms max per Mated Contact |
| Insulation Resistance | 1000 MOhms Min. |
| Dielectric Withstanding Voltage | 1050 VDC rms Min. |
| Insert | Outer Shell –Black LCP Male Contact – Alloy 7025 |
| Contact Termination | Welded |
| Contact Plating | 50µ" Au over 100µ" Ni |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |

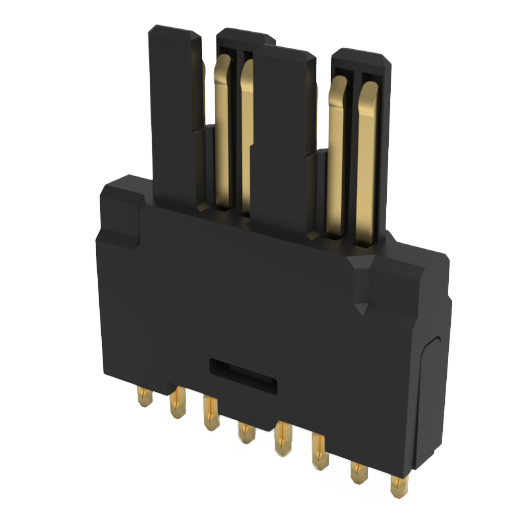

VTAC, Insert, Receiver/ITA, SIM, Vertical Header, 8 Pos
The VTAC vertical header insert contains 8 VTAC high speed contacts and is designed to mount directly to a PCB. It can be configured as a backplane connector and daughterboard connector. Also sold as a set with 610151108.
