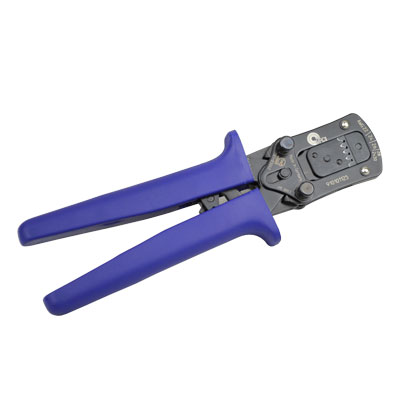

Tool, Crimp, QuadraPaddle, Receiver
Crimp Tool Part # 910 101 125 is used to crimp receiver QuadraPaddle contacts.
Accessories and Related Parts
Contact - Receiver
Signal, Contact, Receiver, QuadraPaddle, 5 Amp, 22-28 AWG, 50µ” Au, Crimp
Signal, Contact, Receiver, QuadraPaddle, 5 Amp, 22-28 AWG, 30µ” Au, Crimp
