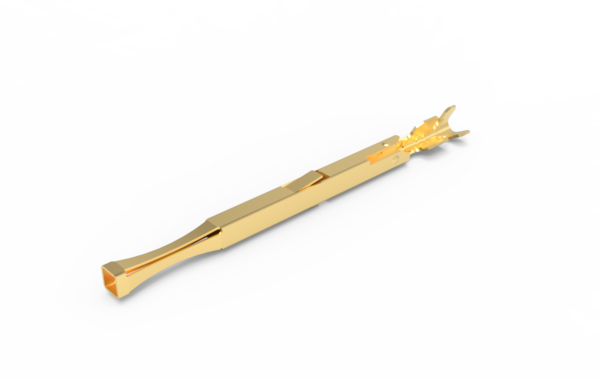

Specifications
Operating Voltage & Current	5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4
Contact Resistance	25 mOhms Max. Measured at 50 mV @ 100 mA
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Insulation Resistance	5000 MOhms Min.
Contact Body	BeCu
Contact Plating	50µ” Au over 100µ” Ni
Cycle Life	20,000 Cycles
AVG Mating Force(lbs)	0.24

	Part Number	Description
	610138109	Signal, Contact, ITA, QuadraPaddle, 5 Amp, 22-24 AWG
	610138112	Signal, Contact, ITA, QuadraPaddle, 5 Amp, 26-30 AWG

	Part Number	Description
	610138100	Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female
	610138200	Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female

	Part Number	Description
	510150115	Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
	510150116	Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded

	Part Number	Description
	510160101	Signal , Module, Receiver, QuadraPaddle, iCon Series, 160 Position, for crimp contacts
	510160102	Signal / Mini Power/ Mini Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/8 Position
	510160107	Signal/ Micro Power/Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Positions, for crimp contacts
