High Speed SIM Modules

Many of VPC's Snap-In-Modular (SIM) inserts share the same footprint, which makes them compatible with our 90 Series SIM modules, i2 MX connector, and iCon/i1 SIM modules. This expanded compatibility supports greater flexibility in integrating diverse insert types within a single test module, enabling comprehensive signal integrity validation across a wide spectrum of data rates.

Click here for video instructions on how to properly extract VTAC inserts from a SIM module.

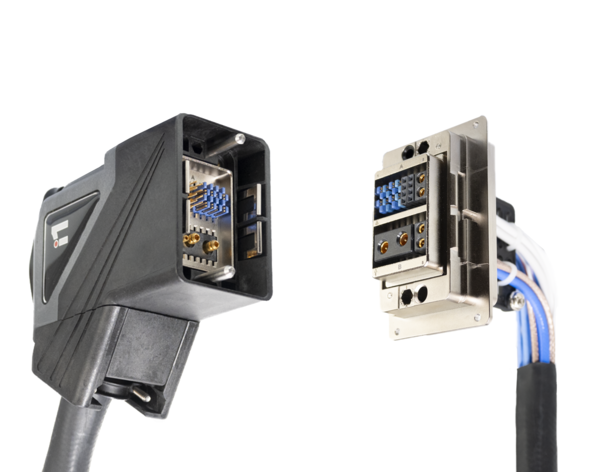

ITA

  • 410130116
    ITA, i2 MX, 22 Slot VTAC/SIM Insert, EMI
    410130133
    ITA, i2 MX 22 Slot VTAC/SIM Insert, EMI, XL Backshell

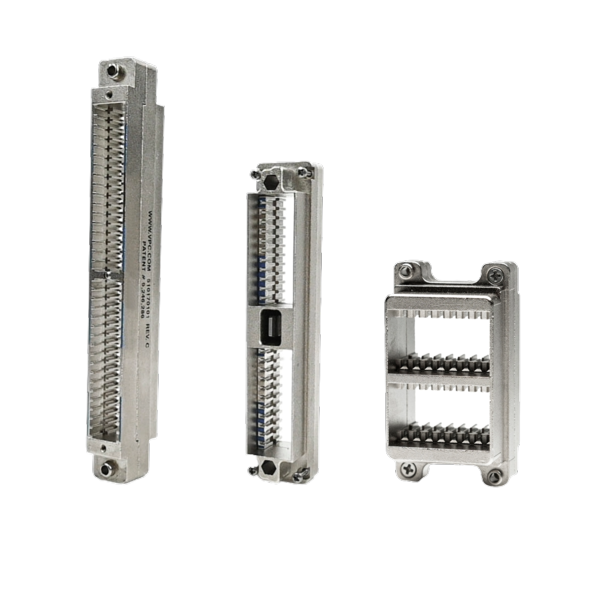

Module - 90 Series ITA

  • 510171101
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

Module - 90 Series Receiver

  • 510170101
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

Module - iCon/i1 ITA

  • 510161130
    VTAC, Module, ITA, iCon Series, 128 Pos, 16 Slot

Module - iCon/i1 Receiver

  • 510160130
    VTAC, Module, Receiver, iCon Series, 128 Pos, 16 Slot

Module Insert - i2 MX ITA

  • 510144001
    Adapter Rails (for High Speed Inserts), i2MX, ITA, 88 Pos, 11 Slot

Module Insert - i2 MX Receiver

  • 510143001
    Adapter Rails (for High Speed Inserts), i2MX, Receiver, 88 Pos, 11 Slot

Receiver

  • 310130113
    Receiver, i2 MX, 22 Slot VTAC/SIM Insert, EMI

SIM Module Right Angle Kit

  • 510170102
    SIM, Module, Receiver, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
    510171102
    SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)

Strain Relief Plate

  • 510109598
    Strain Relief Plate, Receiver/ITA, SIM, PCB or wired solutions
