310104334

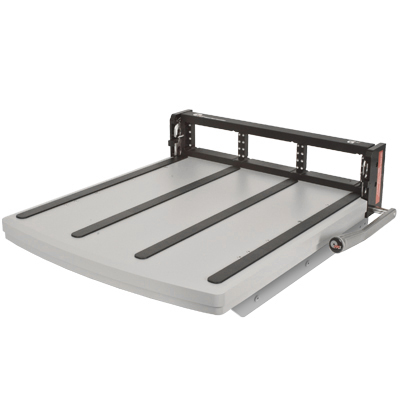

Receiver, G12, 12 Module, 20" Platform, for Slide Mount (slide kit required)
| Specifications | |
|---|---|
| Weight | 26.21 lbs [11.88 kg] |
| Frame Material | Anodized and Powder Coated Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 12 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | Without Leg Kit: 180 lbs [81.65] With Leg Kit: 350 lbs. [158.76 kg] |
| Max. Mating Force | 620 lbs. [281.2 kg] |
Receiver, G12, 12 Module, 20" Platform, for Slide Mount (slide kit required)
The 20” G12 Receiver is a slide-mounted receiver. The 20" platform provides a large surface to hold fixtures or other tools and supports up to 180 lbs. When used in conjunction with VPC's optional leg kit, the receiver can support up to 350 lbs.
This part number includes:
- G12 Receiver
- 20" Platform
- Mounting brackets (for attaching slide kit to platform)
- Left side microswitch
Slide kit, keying kit, leg kit, instrument bracket, right side microswitch any other accessories need to be purchased separately. Designed for VPC 90-Series modules.
