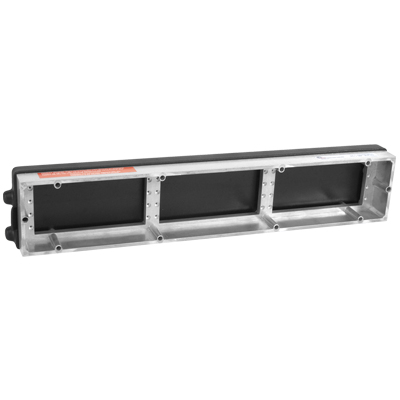

ITA, G12, Front Mount, 12 Module, w/ Vinyl Protective Cover

Weight 2.35 lbs [1.08 kg]
Frame Material Chromated Aluminum
Available Module Slots 12 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Max. Mating Force 620 lbs. (281.2 kg]

The G12 ITA is compatible with all G12 Receiver models and are designed for VPC's 90 series modules. It includes a vinyl protective cover. An optional metal cover is available for purchase separately, p/n 410114010.

ITAs are typically used  to complete connection to the Unit Under Test (UUT).  ITAs may be mounted to a VPC enclosure or customized enclosure.
