310104385

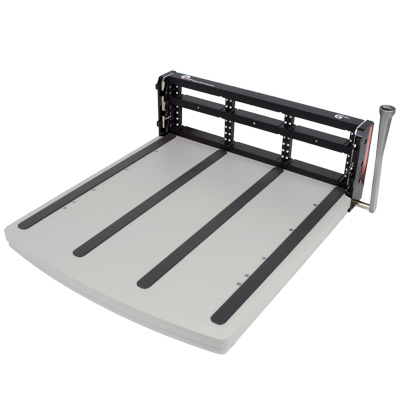

Receiver, G12x, 18 Module, with 20" Platform, for Slide Mount (slide kit required)

Specifications
Weight 27.98 lbs. [12.69 kg]
Frame Material Anodized and Powder Coated Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 18 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Max. Weight Support Without Leg Kit:
180 lbs. [81.65 kg]
With Leg Kit:
350 lb.s [158.76 kg]
Max. Mating Force 890 lbs. [403.7 kg]

The 20” G12x Receiver provides rack mounting and tabletop mounting options. The 20” platform provides a large surface for use with large fixtures and supports 180lbs. When used in conjunction with VPC slide mounts and support legs, the Receiver can support 350 lbs. The Receiver is equipped with VPC’s Quadratrack™ engagement system which provides four points of pull down for a reliable connection every time up to 20,000 cycles. The handle can be rotated in 90 degree increments. This 18 module receiver can also accept 12 module ITAs from standard G12 systems.
