310104387

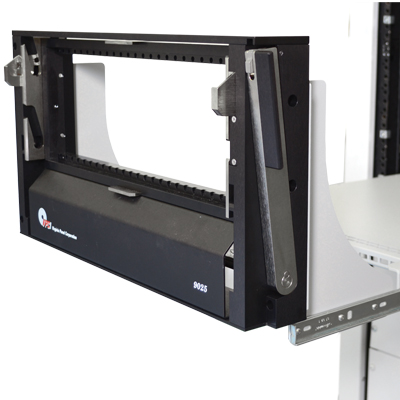

Receiver, 9025, 25 Module, with Slide Mounting Kit (slide kit required)
| Specifications | |
|---|---|
| Weight | 24.9 lbs [11.29 Kg] |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch Material | Stainless Steel |
| Mounting Flange, Instrument Bracket Material | Aluminum |
| Available Module Slots | 25 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Maximum Weight Support | 80 lbs @ 12” (36 Kg @ 30.5 cm) |
The 9025 is a 25 module receiver compatible with all standard VPC 90 series modules and contacts and includes a locking handle to ensure proper ITA engagement. Includes mounting flanges and instrument bracket. Requires slide kit, not included.
*Please note: Consult user manual for information regarding slight slide mechanism bracket protrusion downward into next U height on test rack on both sides of receiver.
