310104419
Receiver Kit, G6 Receivers X 2 , Mounted on Slide Mount Panel (slide kit required)
| Specifications | |
|---|---|
| Weight | 13.2 lbs [5.98 Kg] |
| Side Material | ABS-Polycarbonate Blend |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch Material | Stainless Steel |
| Mounting Plate, Mounting Flange, Instrument Bracket Material | Aluminum |
| Available Module Slots | 12 Positions (Two 6 Module Receivers) |
| Cycle Life | 20,000 Cycles |
| Temperature | -55º C to 85º C |
| Maximum Weight Support | 25 lbs. @ 6" (11 Kg @ 15.25 cm) |
Receiver Kit, G6 Receivers X 2 , Mounted on Slide Mount Panel (slide kit required)

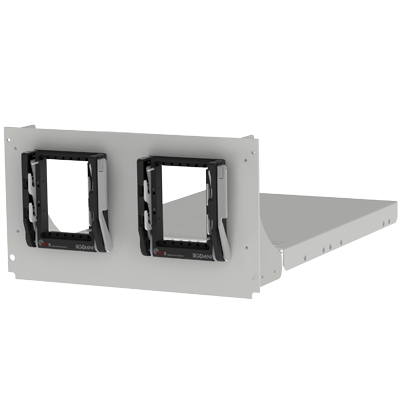

This receiver kit contains (2) G6 Receivers mounted on a special slide mounting panel for easy access to wiring and instrumentation. Each G6 is configured for 6 modules. Panel requires a slide kit for proper rack mounting which is not included and must be purchased separately.
*Please note: Consult procedure sheet/user manual for information regarding slight slide mechanism bracket protrusion downward into next U height on test rack on both sides of receiver.
