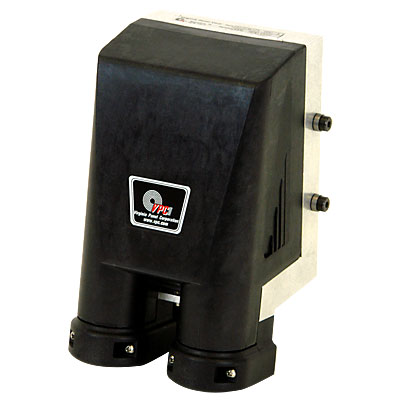

ITA, G6, 6 Module, with Protective Cover

Weight 1.7 lbs [.77 kg]
Backshell Material EMI-Shielded Nylon
Frame Material Chromated Aluminum
Available Module Slots 6
Max. Cable Bundle Diameter 1.59"
Keying Feature Yes
Cycle Life 20,000 Cycles
Temperature -55ºC to 85ºC
Max Mating Force 630 lbs. [285.8 kg]

This G6 ITA is equipped with a removable EMI-shielded backshell. This backshell slides up to provide access to wires and connectors. This ITA also includes a keying feature. Removable and adjustable U-shaped cable clamps are attached by screws to the ITA frame and allow ITA modules to be pre-wired before assembly. The clamps can hold cable bundles with an oblong bushing effective diameter of 1.59". ITA strain relief plates are not needed.
Please note: Full EMI protection is not provided with this model. For more complete EMI protection, see 410104288.
