310104457

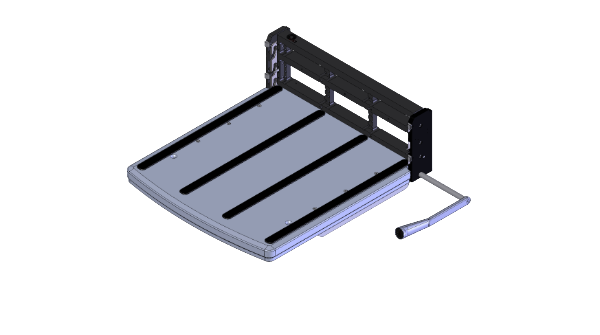

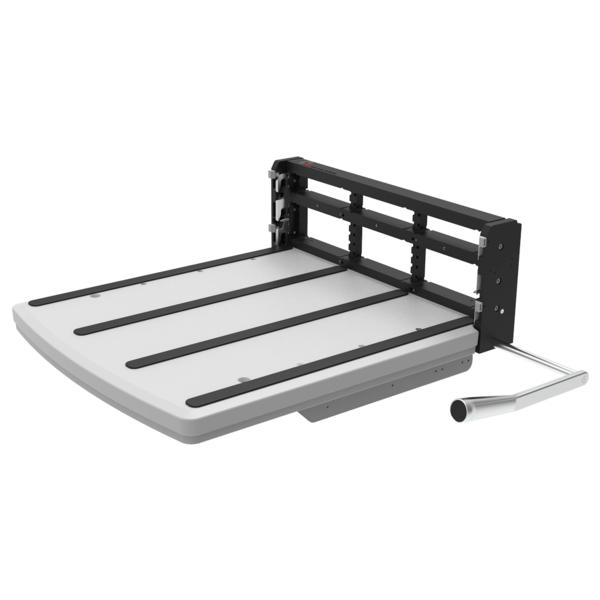

Receiver, G12x, 18 Module, 20" Platform, for Slide Mount (slide kit required), w/ 6" Extended Handle
| Specifications | |
|---|---|
| Weight | 27.98 lbs. [12.69 kg] |
| Frame Material | Anodized and Powder Coated Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 18 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | Without Leg Kit: 180 lbs. [81.65 kg] With Leg Kit: 350 lb.s [158.76 kg] |
| Max. Mating Force | 890 lbs. [403.7 kg] |
Receiver, G12x, 18 Module, 20" Platform, for Slide Mount (slide kit required), w/ 6" Extended Handle
This G12x Receiver is slide-mounted with a 20” platform that supports up to 180lbs. or up 350 lbs. when used with optional leg kit. The G12x is equipped with VPC’s Quadratrack™ engagement system which provides four points of pull-down for a reliable connection every time. The handle is extended 6" and can be rotated in 90 degree increments. The G12x is rated up to 20,000 cycles.
