410104288
ITA, G6, 6 Module, EMI
| Specifications | |
|---|---|
| Weight | 1.6 lbs. [.73 kg] |
| Backshell Material | EMI-Shielded Nylon |
| Frame Material | Chromated Aluminum |
| Available Module Slots | 6 |
| Max. Cable Bundle Diameter | 1.38" |
| Keying Feature | Yes |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Max. Mating Force (lbs) | 630 lbs. [285.8 kg] |

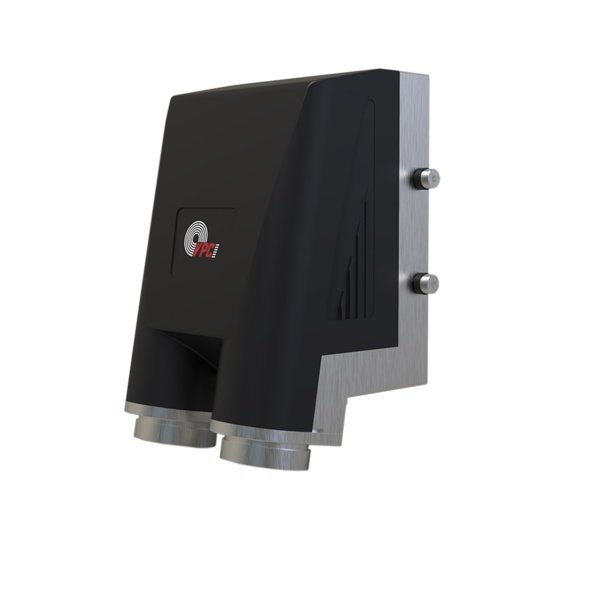

This G6 ITA is equipped with a removable EMI-shielded backshell which slides up to provide access to wires and connectors. This ITA also includes a keying feature and has 2 cable bundle exits with a diameter of 1.38" each and provides EMI protection.
