310130102

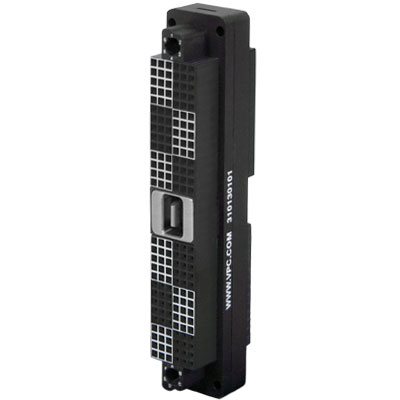

Receiver, i2 Micro iCon, 168 Position, for Crimp Contacts
| Specifications | |
|---|---|
| Weight | .22 lbs [.1 Kg] without protective cover |
| Frame Material | Glass Reinforced Thermoplastic |
| Hardware Material | Stainless Steel Alloy |
| Contact Positions | 168 |
| Cycle Life | 10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 105° C |
The i2 Micro iCon receiver is a one piece connector capable of holding up to 168 QuadraPaddle contacts. QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. This i2 receiver is made for crimp contacts. Accessories such as keying pin kits, protective covers, and strain relief are available.
