310130101

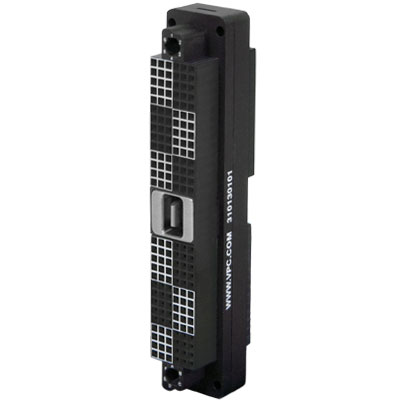

Receiver, i2 Micro iCon, 168 Position, Fully Loaded with Twin Female Contacts (610 138 200)

Specifications
Weight .18 lbs [.08 Kg]
Frame Material Glass Reinforced Thermoplastic
Hardware Material Stainless Steel Alloy
Contact Positions 168 (loaded)
Cycle Life 10,000 Cycles
Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 105° C

The i2 Micro iCon receiver is a one piece connector capable of holding up to 168 QuadraPaddle contacts. QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. This i2 receiver is fully loaded with twin female contacts, QuadraPaddle Part # 610 138 200. Accessories such as keying pin kits, protective covers, and strain relief are available.
