310130104
Receiver, i2 Micro iCon, 120/12 Position Hybrid, Loaded w/ Twin Female QuadraPaddle Contacts
| Specifications | |
|---|---|
| Weight | .25 lbs [.11 Kg] without protective cover |
| Frame Material | Glass Reinforced Thermoplastic |
| Hardware Material | Stainless Steel Alloy |
| Contact Positions | 120 Signal, 12 Micro Coax/Power |
| Cycle Life | 10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 105° C |

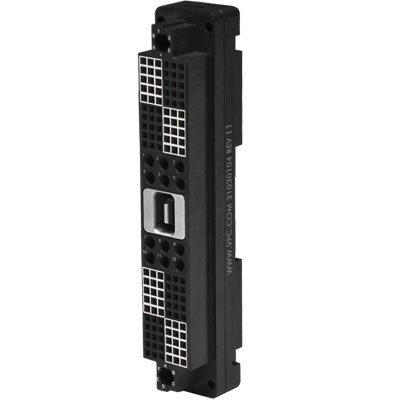

Receiver, i2 Micro iCon, 120/12 Position Hybrid, Loaded with Twin QuadraPaddle Female Contacts (610 138 200)
This i2 Micro iCon receiver is a one-piece hybrid connector capable of holding up to 120 Signal QuadraPaddle contacts and 12 Micro Coax or Micro Power. This receiver is pre-loaded with twin female contacts, QuadraPaddle Part # 610 138 200.
Accessories such as keying pin kits, protective covers, and strain relief are available.
