410130104
ITA, i2 Micro iCon, 120 QuadraPaddle/12 Micro Power or Micro Coax Position Hybrid
| Specifications | |
|---|---|
| Weight | .25 lbs [.11 Kg] without protective cover |
| Frame Material and Clamp Housing | Glass Reinforced Thermoplastic |
| Hardware Material | Stainless Steel |
| Latches | Nickel-Plated Beryllium Copper |
| Backshell | Glass Reinforced Thermoplastic |
| Cable Clamp Material | Powder Coated Aluminum |
| Contact Positions | 120 Signal, 12 Micro Coax/Power |
| Cycle Life | 10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 105° C |
ITA, i2 Micro iCon, 120 QuadraPaddle/12 Micro Power or Micro Coax Position Hybrid

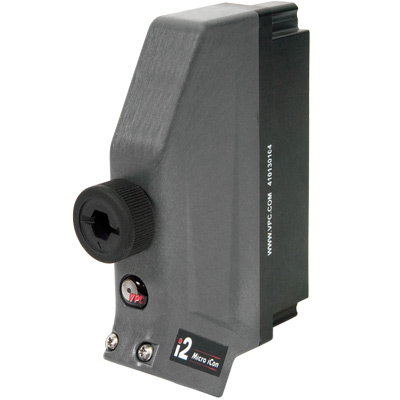

The i2 Micro iCon ITA is capable of holding up to 120 QuadraPaddle contacts and up to 12 Micro Power or Micro Coax contacts. Its sleek, 0.8" footprint allows for a large volume of horizontal stackability.
A 30° u-shaped cable clamp has an oblong bushing effective diameter of 0.77 ". A removable cover allows easy access to wiring for maintenance and probing. Integrated spring locking tabs ensure even and secure engagement.
Cable bundle too large? Choose the XL model! Choose an XL-sized backshell, bend radius, & cable exit to better accommodate larger cables such as high-power, high-speed, or twisted pair.
