610138100

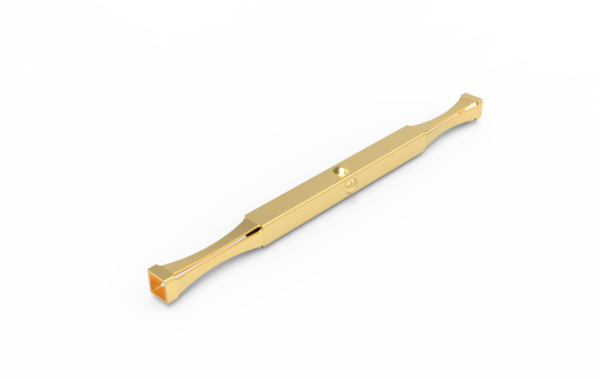

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female
| Specifications | |
|---|---|
| Operating Voltage & Current | 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4 |
| Contact Resistance | 25 mOhms Max. Measured at 50 mV @ 100 mA |
| AVG Mating Force (lbs.) | .24 |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 5000 MOhms Min. |
| Contact Body | BeCu/PhBrz |
| Contact Plating | 50µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female
Primary mating contact 610138117. (May mate with other Male Adapter and ITA contacts, as well.)
