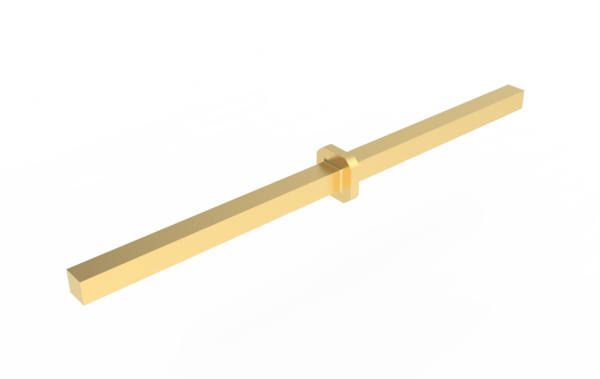

Signal Contact, Receiver, QuadraPaddle, 5 Amp, Male Adapter, .025" Square Post for Wire Wrap

Operating Voltage & Current 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4
Contact Resistance 25 mOhms Max.
Measured at 50 mV @ 100 mA
Dielectric Withstanding
Voltage (DWV)
1500 VDC Min.
Insulation Resistance 5000 MOhms Min.
Contact Body Brass
Contact Plating 30µ” Au over 100µ” Ni
Cycle Life 20,000 Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs) 0.24

Available in twin-female, crimp/solder, twin male, and wire-wrap design, QuadraPaddle contacts are engineered for flexible interconnect options. Rated at 5 amps continuous (1250 VAC) with a 2 ounce insertion force, QuadraPaddle contacts provide 4 reliable points of contact per pin, outstanding electrical performance, and low mating force.
