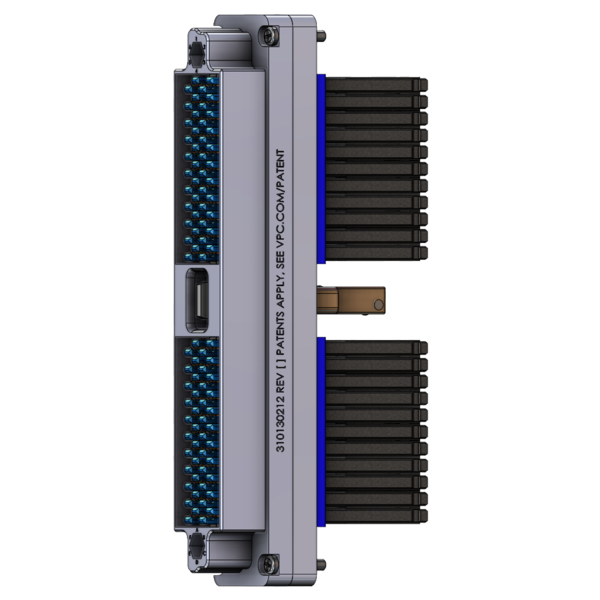

Receiver, i2 MX, 22 Slot VTAC/SIM Insert, EMI, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)

This fully loaded SIM module kit comes with 22 pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106). This kit also includes a PCB bracket for securing module to PCB.

	Part Number	Description
	610151104	VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot
	610151105	VTAC, Insert, Receiver/ITA, SIM, Retention, 1 Slot

	Part Number	Description
	610151102	VTAC, Insert, Receiver/ITA, SIM, Blank Insert Kit, 10 Pieces
	610151103	VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot

	Part Number	Description
	610151106	VTAC, Insert Bundle, Receiver/ITA, SIM, Right Angle and Pass-Thru

	Part Number	Description
	410130116	ITA, i2 MX, 22 Slot VTAC/SIM Insert, EMI
	410130133	ITA, i2 MX 22 Slot VTAC/SIM Insert, EMI, XL Backshell

	Part Number	Description
	910112130	Tool, Extraction, VTAC, Receiver and ITA

	Part Number	Description
	910112132	Tool, Insertion, Right Angle, VTAC

Add To Quote
