Receiver, i2 Micro iCon, 120/12 Position Hybrid, for Crimp Contacts

Weight .22 lbs [.1 Kg] without protective cover
Frame Material Glass Reinforced Thermoplastic
Hardware Material Stainless Steel Alloy
Contact Positions 120 Signal, 12 Micro Coax/Power
Cycle Life 10,000 Cycles
Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 105° C

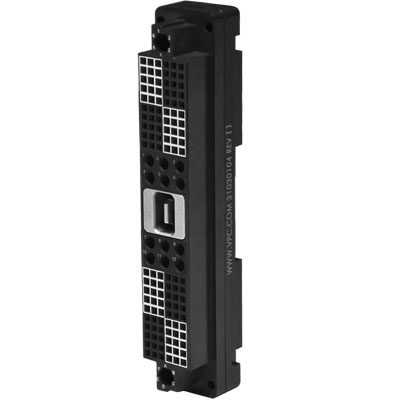

The i2 Micro iCon receiver is a one piece connector capable of holding up to 120 Signal QuadraPaddle contacts and 12 Micro Coax or Micro Power. QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. This i2 receiver is made for crimp contacts. Accessories such as keying pin kits, protective covers, and strain relief are available.
