410130106
ITA, i2 Micro iCon, 168 Position, XL Backshell (XL Bend Radius and Cable Exit)
| Specifications | |
|---|---|
| Backshell, Cable Clamp, Cable Bushing, Handle | Aluminum Alloy, Ni Plated |
| Connector Body | Reinforced Thermoplastic |
| Drive System | Heat-Treated BeCu & Brass, Ni Plated |
| Dust Shield | Black Thermoplastic |
| Hardware | Stainless Steel |
| EMI-Shielded | No |
| Max Cable Effective Dia. | 1.67" |
| Contact Positions | 168 Signal |
| Cycle Life | 10,000 Cycles |

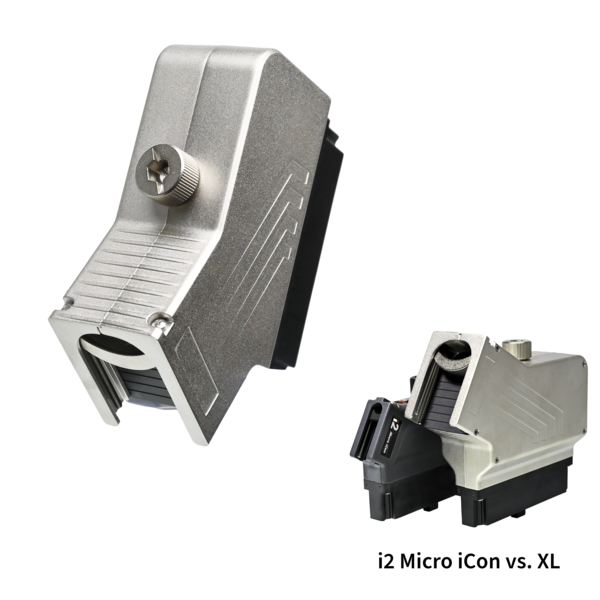

ITA, i2 Micro iCon, 168 Position, XL Backshell (XL Bend Radius and Cable Exit)
This XL model with XL-size backshell allows for a greater cable bend radius and includes a larger cable exit. The max cable bundle eff diameter= 1.67". Cable clamp may be inverted for smaller cable bundles.
Note: XL backshell size creates requirement for larger spacing when used for side-by-side mounting. Minimum recommended distance = 1.75".
Compatible with standard i2 Micro iCon 168 position receivers.
Keying feature requires purchase of separate keying kit p/n 310113461.
