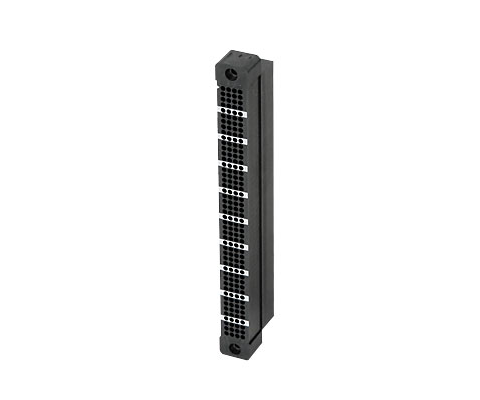

Signal, Module, ITA, QuadraPaddle, 192 Position, Unloaded

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 192
Module Slots Needed 1

Signal, Module, ITA, QuadraPaddle, 192 Position, Unloaded



QuadraPaddle modules are molded on .1" (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. Allowing flexible configuration options with standard commercial connectors, QuadraPaddle modules are designed to fit any VPC pin and socket-based mass interconnect system. Available in 192 and 480 contact positions, QuadraPaddle modules accept standard .1" (2.54mm) pitch headers, breadboards, and connectors for direct PCB, ribbon cable, and other connections as well as discrete wiring.

Add To Quote

Accessories and Related Parts

Contact - ITA

Part Number

Description

610138109

Signal, Contact, ITA, QuadraPaddle, 5 Amp, 22-24 AWG
610138112

Signal, Contact, ITA, QuadraPaddle, 5 Amp, 26-30 AWG
610138115

Signal, Contact, ITA, QuadraPaddle, 5 Amp, .025" Round Post
610138122

Signal, Contact, ITA, QuadraPaddle, 5 Amp, .025" Square Post for Wire Wrap with Anti-Rotation

Module - ITA

Part Number

Description

510151107

Signal Module, ITA, QuadraPaddle, 192 Position, Fully Loaded with Round Posts (610 138 115)
510151124

Signal Module, ITA, QuadraPaddle, 192 Position, Fully Loaded with Square Posts for Wire Wrap with Anti-Rotation (610 138 122)

Module - Receiver

Part Number

Description

510150115

Signal, Module, Receiver, QuadraPaddle, 192 Position, Wire Crimp, Unloaded
510150130

Signal, Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded w/ Twin Female Contacts (610138200)
510150136

Signal, Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
510150137

Signal, Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
510150152

Signal Module, Receiver, QuadraPaddle, 192 Position, Right Angle Contacts for Custom PCB Mounting (510 150 130 and 510 109 315)

Module Accessory Kit

Part Number

Description

VPC 510109302

Module Accessory Kit, Quantity 26, 4-40 x .625" Socket Head Cap Screws

PCB Adapter

Part Number

Description

510150125

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Male SCSI Connectors
510150126 PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Female VHDCI Connectors
510150127 PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 1x100 Pin Female SCSI Connector
510150128 PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x96 Male SCSI Connector
510150155 PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 6x32-Pin Ribbon Cable Headers
510150210

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to 2 PCB-Mounted 12X Female InfiniBand Connectors (LVDS)
VPC 510150224 PCB Adapter, Receiver, QuadraPaddle, 192 Position, to 9 PCB-Mounted Cat 5 Connectors

Strain Relief Plate

Part Number

Description

510109296

Strain Relief Plate, ITA, 90 Series
