510160133

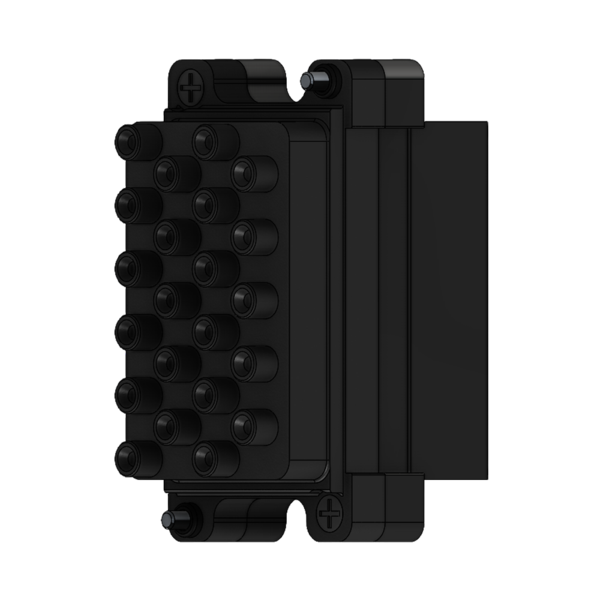

Signal, Module, Receiver, TriPaddle, iCon Series, 22 Positions, High Voltage Connector
| Specifications | |
|---|---|
| Material | Black-FR4 |
| Temperature | -55°C to 125°C |
| UL-94 Flame Class | V-0 |
| Dielectric Withstanding Voltage (DWV) | 11.25kV |
| Available Contact Positions | 22 |
| Module Slots Needed | 1 |
A high-voltage connector ideal for HI-POT testing and high reliability cables, designed with increased spacing between conductive materials to prevent arcing.
Signal, Module, Receiver, TriPaddle, iCon Series, 22 Positions, High Voltage Connector
Mating module 510161133. (Will not mate with other ITA modules.)
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts.
Consolidate HIGH VOLTAGE INSULATION testing and SIGNAL CONTINUITY testing into ONE INTERFACE.
