610110177

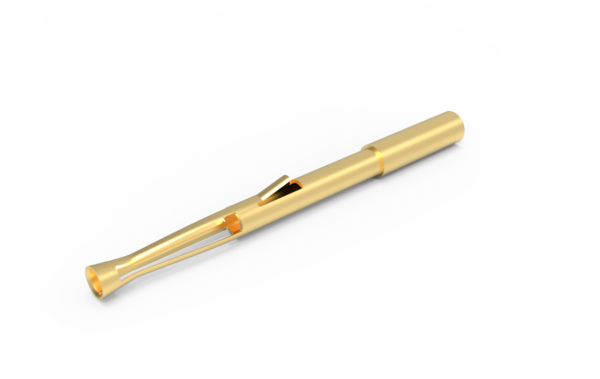

Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG

Specifications
Operating Voltage & Current 10 Amps Max. Continuous (14 AWG)
600 Volt Max. use of wire Mil-W-16878/4
Contact Resistance 4 mOhms Max.
Measured at 50 mV @ 100 mA
Dielectric Withstanding
Voltage (DWV)
1500 VDC Min.
Insulation Resistance 4000 MOhms Min.
Contact Body BeCu
Contact Plating 30µ” Au over 100µ” Ni
Contact Termination Crimp/Solder
Cycle Life 20,000 Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs.) 0.41

Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG

Primary mating contact 610110113. (May mate with other ITA contacts, as well.)
