610110167

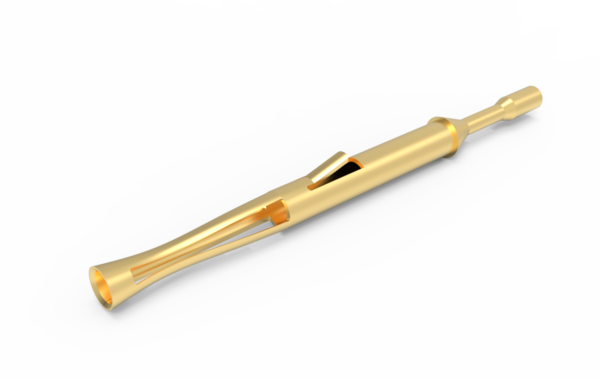

Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
| Specifications | |
|---|---|
| Operating Voltage & Current | 7 Amps Max. Continuous (20 AWG) 600 Volt Max. use of wire Mil-W-16878/4 |
| Contact Resistance | 4 mOhms Max. Measured at 50 mV @ 100 mA |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 4000 MOhms Min. |
| Contact Body | BeCu |
| Contact Plating | 30µ” Au over 100µ” Ni |
| Contact Termination | Crimp/Solder |
| Cycle Life | 20,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs.) | 0.41 |
Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
Primary mating contact 610110169. (May mate with other ITA contacts, as well.)
