610115125

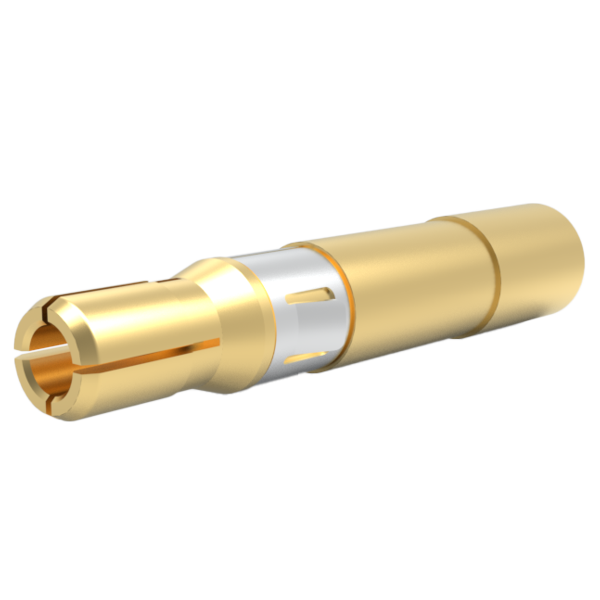

Mini Power Contact, ITA, 65 Amp, 8 AWG

Specifications
Operating Voltage & Current 65 Amps Max. Continuous – 8 AWG
40 Amp Max. Continuous – 12 AWG
30 Amp Max. Continuous – 14 AWG
25 Amp Max. Continuous – 16 AWG
Contact Resistance 1 mOhms Max.
Dielectric Withstanding
Voltage (DWV)
1500 VDC Min.
Insulation Resistance 1000 MOhms Min.
Contact Body BeCu
Contact Plating 30µ” Au over 100µ” Ni
Contact Termination Solder
Cycle Life 20,000 Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs) 3.37

Mini Power Contact, ITA, 65 Amp, 8 AWG

Primary mating contact 610116112. (May mate with other Receiver contacts, as well.)

Mini Power contacts carry up to 65 amps continuous current, 480 VAC. Maximum resistance is 1 Milliohms.
