610116112

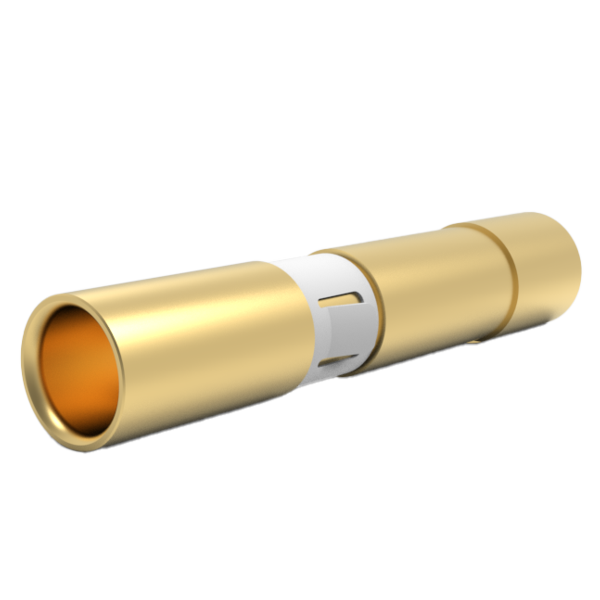

Mini Power, Contact, Receiver, 65 Amp, 8 AWG
| Specifications | |
|---|---|
| Operating Current | 65 Amps Max. Continuous – 8 AWG 40 Amp Max. Continuous – 12 AWG 30 Amp Max. Continuous – 14 AWG 25 Amp Max. Continuous – 16 AWG |
| Contact Resistance | 1 mOhms Max. |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 1000 MOhms Min. |
| Contact Body | Brass |
| Contact Plating | 50µ" Au over 100µ" Ni |
| Contact Termination | Solder |
| Cycle Life | 20,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs) | 3.37 |
Mini Power, Contact, Receiver, 65 Amp, 8 AWG
Primary mating contact 610115124. (May mate with other ITA contacts, as well.)
Mini Power contacts carry up to 65 amperes continuous current. Maximum resistance is 1 Milliohms.
