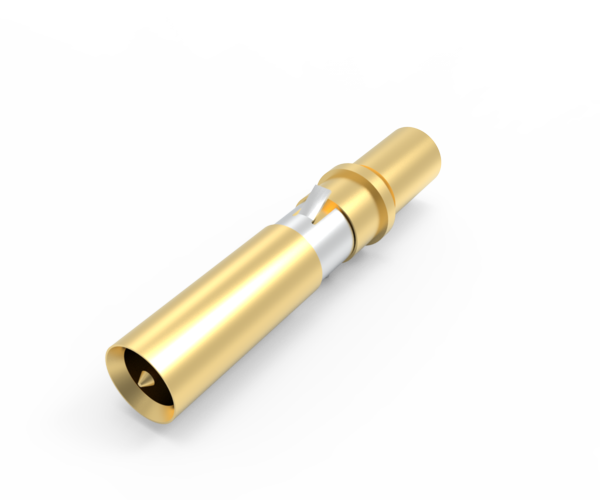

Micro Coax, Contact, Receiver, RG178
Mechanical Specifications | |
---|---|
Durability | 10,000 cycles |
Contact Material |
Center Conductor – BeCu Shield – Brass |
Contact Plating | 50µ" Au over 100µ" Ni |
Contact Termination | Center Conductor - Solder Shield - Crimp |
Insulator | PTFE |
Mating Force | 1.5 lbs max [0.68 kg] |
Electrical Specifications | |
Characteristic Impedance | 50Ω |
Frequency Range | DC to 3 GHz |
VSWR | 1.22 @ 3 GHz |
Insertion Loss | – √f(GHz) x .06 dB |
DWV | 800 V RMS |
Contact Resistance | 6 mOhms center/4 mOhms outer |
Cable Specifications | RG178 |
Environmental Specifications | |
Operating Temperature | -65°C to +125°C |
Vibration | MIL-STD 202, Method 204, Test Condition D |
Shock | MIL-STD 202, Method 213, Test Condition I |
Insulation Resistance | 2000 MOhms Min. |
Micro Coax, Contact, Receiver, RG178
Primary mating contact 610141102. (May mate with other ITA contacts, as well.)
