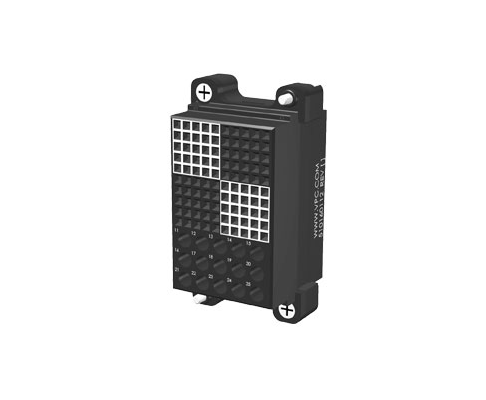

Signal/Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position, loaded w/ twin female contacts & round posts
Specifications | |
---|---|
Material | Black high-temp thermoplastic |
Temperature Range | Operating: -55ºC to 125ºC Non Operating: -65ºC to 220ºC |
Dielectric Withstanding Voltage (DWV) | 1500 VDC min. |
Available Contact Positions | 100/15 |
Module Positions Needed | 1 |
QuadraPaddle Signal/Micro Power/ Micro Coax, Module, Receiver, iCon, 100/15 Position,
This module comes fully loaded with twin female contacts & round posts (p/n's 610138200 & 610138117).
iCon modules mount from the rear of the iCon/i1 receiver and ITA and allow installation and removal of pre-wired cable blocks.
Primary mating module 510161107. (May mate with other ITA modules, as well.)
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
